Receive Alerts Example using MQTT Explorer

MQTT Connection Settings

Host: portal.demo.unifly.tech
Port: 8883
Protocol: MQTT v5.0
SSL/TLS: Enabled
Username: your-api-key
Password: your-api-key

Use your API key for both username and password fields
TLS encryption is mandatory - unencrypted connections will be rejected

Setup in MQTT Explorer

Create New Connection:
- Click "Connections" → "Add Connection"
- Enter the connection details as shown above
- Enable SSL/TLS
- Use API key for both username and password

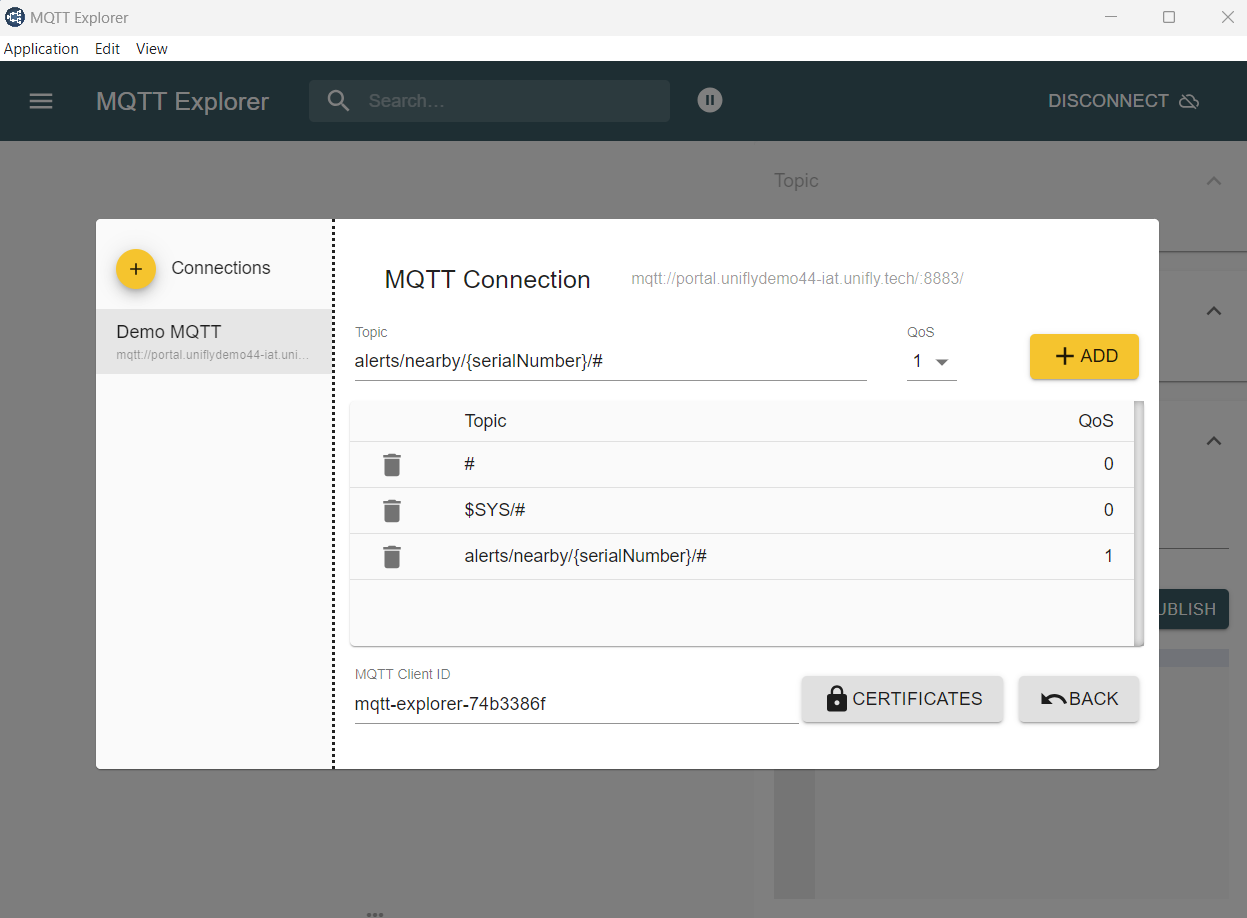

Click "ADVANCED" to add subscription topics:
- Enter alerts/nearby/{serialNumber}/# in topic field
- QoS level should be 1
- Click "ADD"

Replace {serialNumber} with your actual UAS serial number
Use # wildcard to receive all alert types

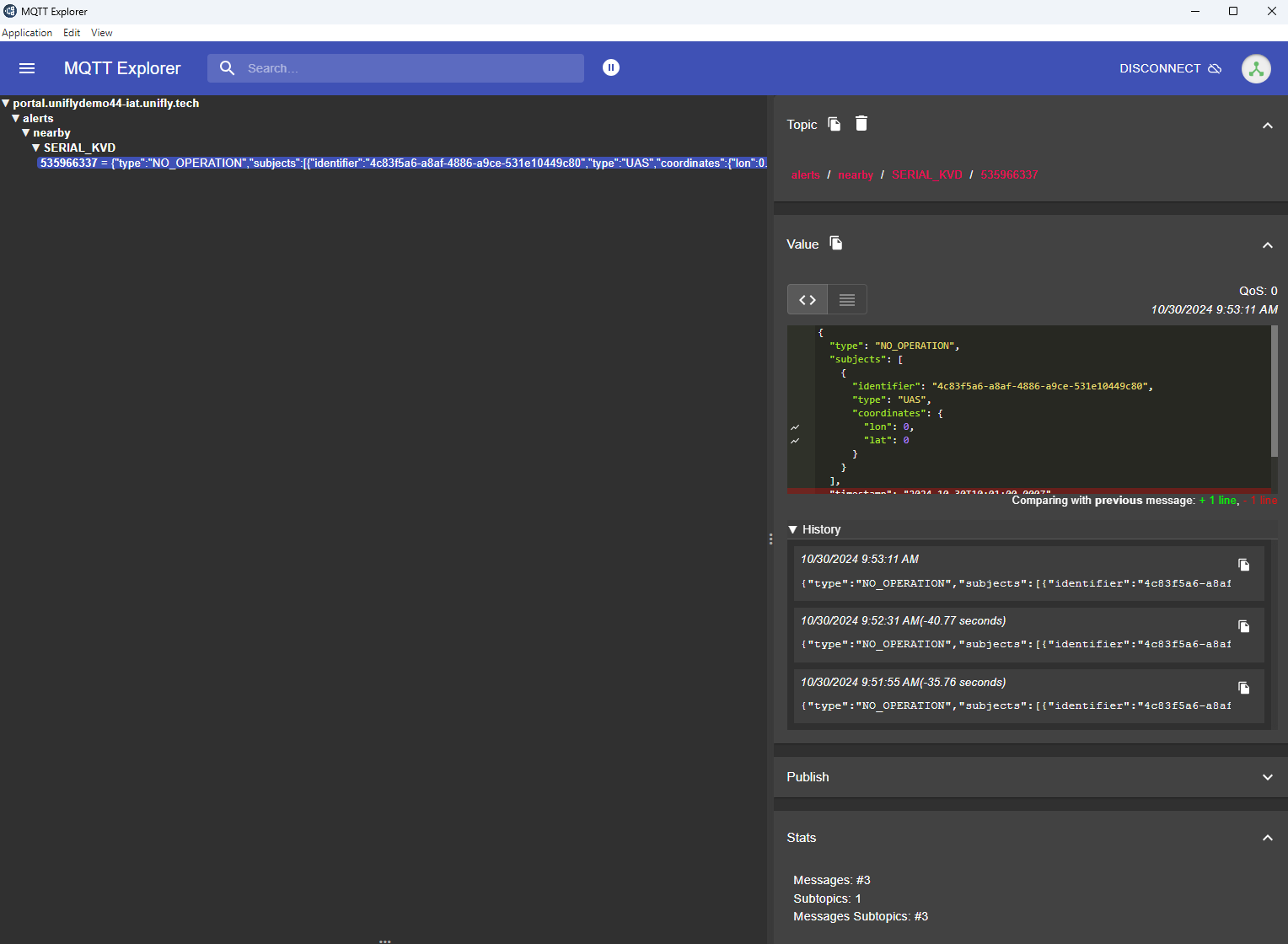

Alert Message Types

Collision Alert

Topic: alerts/nearby/{serialNumber}/{alertId}

API Documentation: receiveNearbyAlerts Operation

Example message:

{
  "type": "UAS_COLLISION",
  "level": "CRITICAL",
  "subject": {
    "uniqueIdentifier": "DRONE123",
    "type": "UAS",
    "position": {
      "longitude": 4.358804,
      "latitude": 50.954191
    }
  },
  "relatedSubject": {
    "uniqueIdentifier": "DRONE456",
    "type": "UAS",
    "position": {
      "longitude": 4.358904,
      "latitude": 50.954291
    }
  },
  "timestamp": "2024-01-23T10:00:00Z"
}

Geofence Alert

Topic: alerts/nearby/{serialNumber}/{alertId}

Example message:

{
  "type": "INTRUSION",
  "level": "WARNING",
  "subject": {
    "uniqueIdentifier": "DRONE123",
    "type": "UAS"
  },
  "relatedSubject": {
    "uniqueIdentifier": "GEO789",
    "type": "GEOZONE"
  },
  "timestamp": "2024-01-23T10:00:00Z"
}

Emergency Alert

Topic: alerts/nearby/{serialNumber}/{alertId}

Example message:

{
  "type": "LOW_BATTERY",
  "level": "CRITICAL",
  "subject": {
    "uniqueIdentifier": "DRONE123",
    "type": "UAS"
  },
  "timestamp": "2024-01-23T10:00:00Z"
}
